Double hung windows are a window style with two sashes stacked vertically that both slide up and down independently within the frame. The upper sash slides down to release warm air near the ceiling, the lower sash slides up to let cool air enter at floor level, and both can open simultaneously to create natural convection that circulates fresh air through the room without mechanical assistance. According to industry data compiled by Window Gurus, double hung windows appear in roughly 60 percent of American homes, making them the single most common residential window style in the United States. The 2025 This Old House survey of 1,000 homeowners confirmed that popularity, with 21.54 percent of respondents selecting double hung windows for their replacement projects. This guide covers how double hung windows work, what makes them different from single hung and casement windows, where they perform best, and how to decide if they are the right choice for your home.
Double hung windows work by using a spring-loaded balance system hidden inside the frame that counteracts the weight of each sash, allowing both the upper and lower sash to slide smoothly up and down and stay in any position you set them. The balance system is the mechanical core of the double hung window. Modern double hung windows use coil or spiral spring balances that apply constant tension against the sash weight. When you push the lower sash up, the spring tension holds it in place. When you pull the upper sash down, the same principle keeps it from sliding shut under its own weight. Older double hung windows built before the 1950s used a different system: cast iron counterweights connected to the sash by cotton sash cords that ran over pulleys inside the frame. The counterweight system was effective but bulky, and the cords eventually rotted and broke.
The transition from counterweights to spring balances is one reason modern double hung windows are slimmer, lighter, and more energy efficient than their predecessors. Spring balance mechanisms take up less space inside the frame, which allows for wider glass areas and better insulation. The sashes ride in vertical channels called jamb liners that guide them straight up and down without wobbling. A sash lock at the meeting rail, the horizontal bar where the upper and lower sash overlap when closed, secures both sashes in the locked position and draws them together to compress the weatherstripping for a tighter seal.
The parts of a double hung window include the upper sash, lower sash, frame, jamb liners, balance system, meeting rail, sash lock, tilt latches, weatherstripping, and glass panels. Each component serves a specific structural, operational, or energy-performance function.
You tell if a window is double hung by checking whether both the upper and lower sash move. Push up on the lower sash and pull down on the upper sash. If both panels slide independently, the window is double hung. If only the lower sash moves and the upper sash stays fixed, the window is single hung. The two styles look nearly identical from the outside because the frame, glass, and meeting rail appear the same. The only visible difference on a closed window is the presence of tilt latches on both sashes of a double hung window, while a single hung window has tilt latches only on the lower sash or none at all.
Another identification method involves looking at the meeting rail hardware. A double hung window has a sash lock that draws both sashes together at the meeting rail. A single hung window may have a simpler latch because the upper sash is permanently seated in the frame and does not need to be drawn into a seal. If you are evaluating older windows in a home built before the 1960s, check the sides of the frame for small access panels or paint lines that indicate counterweight pockets, which confirm the window was originally built as a double hung with a counterweight balance system.
The difference between double hung and single hung windows is that both sashes move on a double hung window, while only the bottom sash moves on a single hung window. This single operational distinction produces differences in ventilation control, cleaning access, cost, energy efficiency, and maintenance. A double hung window offers more flexible airflow because you can open the top, the bottom, or both simultaneously. A single hung window limits airflow to the bottom opening only. A double hung window tilts both sashes inward for easy cleaning from inside the home. A single hung window can only tilt the lower sash inward, leaving the exterior of the fixed upper sash accessible only from outside.
| Feature | Double Hung | Single Hung |
|---|---|---|
| Operable sashes | Both upper and lower | Lower only; upper is fixed |
| Ventilation | Top, bottom, or both open | Bottom only |
| Tilt-in cleaning | Both sashes tilt inward | Lower sash only (or none) |
| Installed cost | $400 to $1,000 | $200 to $600 |
| Energy efficiency | Good (more moving parts = more seal points) | Slightly better (fixed upper sash = tighter seal) |
| Maintenance | More hardware to maintain | Fewer moving parts |
| Window AC compatible | Yes | Yes |
| Best for | Upper floors, bathrooms, kitchens | Budget projects, ground floors |
Sources: HomeAdvisor 2026 pricing data; Pella single-hung vs double-hung comparison; Andersen Windows product data
Yes, single hung windows are cheaper than double hung windows. A single hung window costs $200 to $600 installed, while a double hung window costs $400 to $1,000 installed, according to HomeAdvisor 2026 data. The lower price reflects the simpler construction: a single hung window has one operable sash, one set of balance hardware, and one set of tilt latches instead of two. For homeowners working within a tight budget, mixing single and double hung windows throughout the home is a common strategy. Double hung windows go on upper floors where tilt-in cleaning and dual ventilation matter most, while single hung windows go on ground-floor locations where exterior cleaning is easy and the fixed upper sash provides a slightly tighter seal.
The point of a double hung window is to give homeowners full control over ventilation from both the top and the bottom of the window, combined with the ability to clean both sides of the glass from inside the home without a ladder. These two functional advantages, dual ventilation and tilt-in cleaning, are what separate double hung windows from every other sliding window style. No other window type offers the same combination of upward and downward airflow control with interior-accessible cleaning on both sashes.
The disadvantages of double hung windows are a higher cost than single hung windows, more moving parts that require maintenance, less energy efficiency than casement windows, and a maximum ventilation opening of only 50 percent of the total window area. Each disadvantage reflects a specific trade-off that comes with the dual-sash design.
Double hung windows cost 30 to 60 percent more than single hung windows because they have twice the operating hardware: two sets of balances, two sets of tilt latches, and weatherstripping on both sashes. The additional moving parts also mean more potential maintenance over time. Balance springs can weaken after 15 to 20 years, causing sashes to slip or refuse to stay open. Tilt latches can wear and fail to engage properly. Weatherstripping at the meeting rail and along the jamb liners degrades with use and exposure. Homeowners who notice signs of window wear on their double hung windows should address balance and seal issues promptly to preserve energy performance.
Energy efficiency is another trade-off. A double hung window has more seal points than a casement window because both sashes must seal against the frame and against each other at the meeting rail. More seal points means more potential for air infiltration over time. Pairing double hung windows with energy-efficient glass packages that include Low-E coatings and argon gas fills minimizes this disadvantage. According to Glass Doctor, casement windows are more energy efficient than double hung windows because the compression closure on a casement limits air leakage more effectively than the friction-based contact on a sliding sash. The ventilation limitation also matters: because one sash always overlaps the other, a double hung window can open a maximum of 50 percent of its total area at any time, compared to 100 percent for a casement window.
Double hung windows are better than casement windows for affordability, ease of cleaning, traditional aesthetics, and compatibility with window AC units, while casement windows are better for energy efficiency, ventilation volume, and unobstructed views. The two styles represent the most common trade-off in residential window selection: cost and convenience versus peak airflow and seal performance. Most homes benefit from a mix of both styles, with double hung windows placed where cleaning access and traditional appearance matter and casement windows placed where maximum ventilation and airtight sealing are the priorities.
Double hung windows cost $400 to $1,000 installed, compared to $600 to $1,200 for casement windows, according to HomeAdvisor 2026 data. The cleaning advantage is significant for multi-story homes: double hung windows tilt inward from both sashes, while casement windows must be cleaned from the exterior or by removing the sash. Double hung windows also operate within their frame without projecting outward, making them safe next to walkways, patios, and decks. Casement windows project 6 to 10 inches from the wall when open, which can obstruct narrow exterior spaces. For homeowners choosing between the two, room function and floor level are the strongest decision factors.

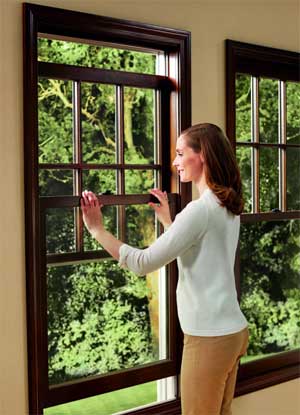

You open a double hung window by unlocking the sash lock at the meeting rail and then sliding either sash up or down, and you clean it by releasing the tilt latches and pulling the sash inward to access the exterior glass from inside the room. The process is straightforward and requires no tools for normal operation.
To open the lower sash, flip the sash lock to the unlocked position, grip the bottom rail of the lower sash, and push upward. The spring balance holds the sash in whatever position you set it. To open the upper sash, pull the top rail of the upper sash downward. To clean the window, close both sashes and lock them. Locate the tilt latches on the top of the lower sash, slide them inward toward the center, and pull the top of the sash toward you until it tilts inward at approximately a 90-degree angle. Clean the exterior glass with a soft cloth and glass cleaner. Push the sash back into the frame until the tilt latches click into the jamb liners. Repeat the same process for the upper sash by pulling it down to the sill position and releasing its tilt latches. We recommend cleaning replacement windows at least twice a year to maintain clear visibility and inspect the weatherstripping for wear.
Yes, double hung windows have screens that mount on the exterior side of the window frame. Because double hung sashes slide vertically within the frame rather than swinging outward, the screen sits on the outside without interfering with the sash operation. A standard double hung screen is a full-height panel that covers the entire window opening, allowing you to open either sash while keeping insects out. Some double hung windows use half screens that cover only the lower portion of the opening, which is sufficient when only the lower sash is open. Full screens provide coverage for both sash positions and are the more common choice for replacement windows.
Exterior screen mounting is simpler and more stable than the interior screens required on casement windows. The screen frame clips or screws into the exterior side of the window frame, and most homeowners can remove and reinstall the screen without tools for seasonal cleaning. Newer screen technologies like flexible, spring-loaded screen frames eliminate the rigid aluminum frame entirely, making the screen nearly invisible when installed and easier to pop in and out for cleaning.
Yes, double hung windows can be used for egress as long as the operable sash opening meets the minimum requirements of the International Residential Code (IRC). Section R310 of the IRC requires egress windows in bedrooms and habitable basement spaces to have a minimum net clear opening of 5.7 square feet, a minimum opening height of 24 inches, a minimum opening width of 20 inches, and a maximum sill height of 44 inches from the finished floor. Because only one sash opens at a time on a double hung window, the net clear opening is limited to roughly half the total window area. A double hung window must be larger than a casement window to produce the same egress-compliant opening.
For example, a 36-inch-wide by 60-inch-tall double hung window with the lower sash fully raised exposes an opening of approximately 36 inches wide by 30 inches tall (half the height), which produces a net clear area of about 7.5 square feet. That exceeds the 5.7-square-foot minimum. A smaller double hung window, such as a 24-inch-wide by 48-inch-tall unit, may not produce a large enough opening to meet code. When selecting replacement windows for bedrooms, confirm that the operable sash opening meets local egress requirements before ordering.
The best places for double hung windows are bedrooms, living rooms, bathrooms, and any room on an upper floor where tilt-in cleaning access matters. Double hung windows are versatile enough for nearly every room in a home, but they perform best in locations where their specific strengths, dual ventilation and interior-accessible cleaning, deliver the most value.
Bedrooms benefit from the natural convection that double hung windows create: opening the upper sash at night allows warm air to escape while the lower sash draws in cooler evening air. Living rooms and family rooms gain a traditional aesthetic that complements most home styles. Bathrooms use the upper sash to vent steam and humidity near the ceiling while keeping the lower sash closed for privacy. Second-story rooms of any type benefit most from tilt-in cleaning, which eliminates the need for ladders against the building exterior. Homeowners across the Portland metro area often combine double hung windows on upper floors with ventilation-optimized styles like casement or awning windows on the main floor to get the best performance from each room.
Yes, double hung windows are worth it for homeowners who value dual ventilation, easy cleaning from inside the home, and a traditional appearance. The additional cost compared to single hung windows pays for itself through the tilt-in cleaning feature alone, especially on second-story windows where exterior access requires a ladder. According to the 2025 Remodeling Cost vs. Value Report, vinyl replacement windows recoup 68.5 percent of their cost at resale, and double hung windows are the most widely recognized and requested style among home buyers. Visiting a showroom to compare double hung, casement, and sliding windows side by side is the fastest way to see how each style operates and looks in person.
Double hung windows open to approximately 50 percent of the total window area. Each sash can slide past the other until it reaches the midpoint of the frame. On a 60-inch-tall window, each sash can open approximately 30 inches, exposing half the window for airflow. Both sashes can be open simultaneously, with the upper sash pulled down and the lower sash pushed up, but the total open area remains 50 percent because the sashes overlap in the middle.
A cottage style double hung window is a variation where the upper sash is shorter than the lower sash, typically in a 40/60 split. The taller bottom sash and shorter top sash create a distinctive proportion that adds historic charm to Cape Cod, Colonial, and Craftsman homes, according to Milgard and Andersen product documentation. A reverse cottage sash flips the proportion, with a shorter bottom sash and taller top sash. Cottage sash windows operate identically to standard double hung windows; the only difference is the visual balance between the two panels.
Sliding windows and double hung windows fall into similar price ranges. Sliding windows cost $250 to $1,800 installed, while double hung windows cost $400 to $1,000 installed, according to HomeAdvisor 2026 data. Small sliding windows are less expensive than double hung windows, but large sliders with premium glass can exceed double hung pricing. For a standard-size opening, the two styles are comparably priced. The choice between them depends on orientation: double hung windows work best in vertically oriented openings, while sliding windows work best in wider, horizontally oriented openings.
Double hung windows last 20 to 30 years for vinyl frames and 30 to 50 years for fiberglass frames, assuming proper installation and routine maintenance. The balance system and tilt hardware may need replacement or adjustment before the frame and glass reach end of life. Insulated glass units typically last 15 to 25 years before the seal fails and condensation appears between the panes. Replacing the glass unit extends the window’s life without replacing the entire frame. We carry double hung replacement windows from Milgard and Marvin for homeowners ready to upgrade.
Double hung windows earned their place as the most common residential window style through a combination of ventilation control, easy cleaning, traditional appearance, and practical compatibility with patios, walkways, and window AC units. The dual-sash design gives you airflow options that no other sliding window can match, and the tilt-in feature makes second-story glass maintenance safe and simple. The trade-offs, including higher cost than single hung, more maintenance points than casement, and a 50-percent maximum opening, are predictable and manageable through proper product selection and periodic upkeep. According to ENERGY STAR, certified energy-efficient windows can reduce heating and cooling costs by up to 13 percent, and modern double hung windows with Low-E glass and argon gas fills deliver strong performance at a price point most homeowners find accessible.
If you are considering double hung windows for your home, EnergyGuard Windows & Doors offers free in-home design consultations to help you choose the right window style, material, and glass package for every room. Call us at (503) 554-5500 to schedule yours.
