Measuring for replacement windows requires taking three measurements each for width, height, and depth from inside your home, then using the smallest number in each dimension to order the correct size. A diagonal check across opposite corners confirms whether the opening is square enough for a standard replacement. The difference between a window that fits perfectly and one that leaks air for decades often comes down to a fraction of an inch. According to the U.S. Department of Energy, heat gain and loss through windows accounts for 25 to 30 percent of residential heating and cooling energy use, and that percentage rises sharply when windows are poorly fitted due to measurement errors. This guide walks through every step of the measurement process, explains how to read window size numbers, covers standard sizes, and helps you decide when professional measurement makes the most sense.
You measure for replacement windows by recording the width, height, and depth of your existing window opening at three separate points each, then selecting the smallest number from each set of measurements. The reason for three measurements per dimension is that window openings shift over time as homes settle, framing lumber shrinks, and foundations move. A single measurement taken at just one point can be off by a quarter inch or more from the actual tightest spot in the opening. The U.S. Department of Energy reports that air leakage around windows and doors contributes 25 to 40 percent of the energy used for heating and cooling in an average home, according to ENERGY STAR data. Precise measurements directly reduce that leakage by producing a window that fits tightly within its opening.
The measurement process follows a specific sequence. You start by gathering the right tools, then determine where to stand when measuring, and then work through width, height, depth, and a squareness check in order. Each step builds on the one before it, so skipping ahead often produces errors that only surface after the window has been manufactured and delivered. According to a Fine Homebuilding analysis, 92 percent of window installation failures trace back to non-square or non-plumb rough openings, which makes the geometry check just as important as the dimensional measurements themselves.
The tools you need to measure for replacement windows are a locking steel tape measure, a four-foot level, a notepad and pencil, and a helper to hold one end of the tape. A locking steel tape measure is preferable to a cloth or retractable plastic tape because steel does not stretch or bow across longer spans. A four-foot level allows you to check whether the sill is truly horizontal and whether the jambs are plumb, which affects how the window will operate after installation. The notepad is for recording every measurement immediately. Relying on memory across multiple windows in a house leads to transposed numbers and costly reorders.
Before measuring, inspect every window frame for rot, water damage, cracked wood, or soft spots. A frame with structural damage may need a full-frame replacement rather than an insert, which changes what you measure and how you measure it. Catching frame damage early saves you from ordering the wrong type of window.
You measure a window from inside the house, not from outside. The interior side provides direct access to the actual window opening where the replacement unit will sit. Exterior measurements include trim, siding, or brick that does not represent the true opening dimensions. Interior casing and exterior trim remain in place during an insert replacement, so measuring between the inside surfaces of the jambs gives you the accurate frame-to-frame dimension. The only exception applies to full-frame replacements where the entire frame and trim are removed; in that situation, you may also need exterior measurements to confirm the rough opening in the wall framing. For the vast majority of replacement projects, interior measurements are the correct approach.
Measuring from outside introduces a second problem beyond inaccuracy. Siding, stucco, and brick all overlay the actual framing at varying thicknesses, and that thickness is nearly impossible to estimate visually. A measurement taken against vinyl siding can be off by a full inch compared to the jamb-to-jamb dimension inside. Ordering replacement windows based on exterior measurements frequently produces oversized units that physically cannot fit the opening.
You should measure for insert replacement windows when your existing window frame is structurally sound, and measure for full-frame replacement windows when the frame shows rot, warping, or water damage. An insert replacement, also called a retrofit or pocket replacement, slides a new window unit into the existing frame. You measure the interior of the existing frame from jamb to jamb. A full-frame replacement removes everything down to the rough opening in the wall studs. You measure the rough opening itself, which is larger than the frame opening.
Insert replacements account for the majority of residential window replacement projects because they are faster, less disruptive, and more affordable. The existing frame must be in good condition for this approach to work. Run your fingers along all four sides of the frame and press firmly at the corners and along the sill. Soft spots, peeling paint that reveals darkened wood, or visible gaps between the frame and the wall all signal that the frame cannot support a new insert window. A new construction window with nailing fins attached directly to the wall sheathing is the correct choice when the existing frame has failed. The measurement process for both types follows the same three-point method for width and height, but the surfaces you measure between are different.

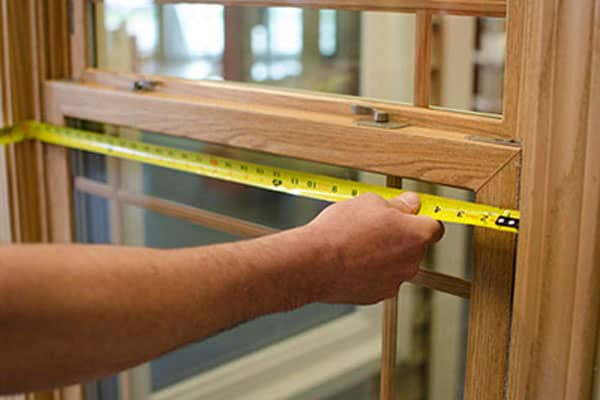

You measure window width for replacement by placing your tape measure horizontally between the inside surfaces of the two side jambs at three separate points: the top, the middle, and the bottom of the opening. The jambs are the vertical wooden or vinyl pieces on the left and right sides of the window frame. Do not measure from the trim, the parting beads, or any decorative molding. Measure from the flat inner surface of one jamb to the flat inner surface of the opposite jamb.
Record all three width measurements individually. The three numbers will often differ by an eighth or even a quarter of an inch because the opening has shifted over time. According to industry installation standards, the smallest of the three width measurements is the number you use when ordering your replacement window. Using the smallest width guarantees that the window will physically fit through the narrowest point in the opening. The installer compensates for the slightly larger areas on the other two measurement lines by adding shims, which are thin tapered pieces of wood or composite material that fill the gap between the window frame and the jamb.
The difference between a rough opening and a window size is that the rough opening is the framed hole in the wall where the window sits, and the window size is the actual exterior dimension of the window unit itself. The rough opening is always slightly larger than the window to allow room for shimming, leveling, and insulating. Industry standards call for the rough opening to be one-half inch larger than the window in both width and height. That half-inch gap provides one-quarter inch of clearance on each side, which the installer fills with low-expansion spray foam or backer rod and sealant to create an airtight seal.
The National Fenestration Rating Council (NFRC) requires that energy-efficient windows maintain an air leakage rating of 0.3 cubic feet per minute per square foot or lower. Understanding energy ratings helps you appreciate why the gap between window and opening matters so much. Even a window with a perfect factory rating will underperform its NFRC certification if the gap between the window and the rough opening is not properly insulated during installation. Proper gap sizing starts with correct measurement.
You measure window height for replacement by placing your tape measure vertically from the high point of the sill to the underside of the head jamb at three points: the left side, the center, and the right side of the opening. The sill is the horizontal piece at the bottom of the frame, and the head jamb is the horizontal piece at the top. Measure from the highest point on the sill, which is the surface closest to the interior of the window where the sash rests, not the outer ledge that angles downward. Measuring from the wrong sill surface adds height that does not exist in the actual opening, producing a window that is too tall to fit.
Record all three height measurements and use the smallest number for ordering. Height variations between the left and right sides of the opening are common in older homes where the foundation has settled unevenly. Significant height variation, anything greater than a quarter inch between the tallest and shortest measurement, suggests the opening may need shimming adjustments during installation. Choosing low-E windows with strong insulation ratings makes the most of a properly measured opening. The installer will level the window using shims even if the opening is not perfectly uniform, but the window must be small enough to fit through the shortest point first.
You measure window depth for replacement by measuring the distance from the inside face of the interior stop to the inside face of the exterior stop. The interior stop is the strip of molding on the room side of the window that holds the lower sash in place. The exterior stop is the corresponding strip on the outside. This measurement tells you whether your wall has enough space to accommodate the new window replacement unit. Standard replacement windows require a minimum jamb depth of three and one-quarter inches to fit between the stops.
When measuring depth, ignore any pulleys, parting strips, or weatherstripping from the old window, as these components are removed during installation. If your jamb depth measures less than three and one-quarter inches, you may need extension jambs or a different window product designed for shallow walls. Homes built before the 1950s in the Portland metro area sometimes have thinner wall assemblies than modern construction standards require, making the depth measurement especially important in older properties.
You check if a window opening is square by measuring diagonally from the top left corner to the bottom right corner, then measuring diagonally from the top right corner to the bottom left corner, and comparing the two numbers. If the two diagonal measurements match within one-quarter inch of each other, the opening is square enough for a standard replacement window. A difference greater than one-quarter inch means the opening is “racked,” which is common in homes that have settled over the decades.
A racked opening does not automatically disqualify replacement windows, but it does require adjustments. The installer uses shims to square the window within the opening, and the gap is sealed with foam and caulk. According to Fine Homebuilding data, 92 percent of window installation failures trace back to openings that are not square or plumb. Skipping the diagonal check is one of the most common measurement mistakes homeowners make, and it is the single easiest step to perform with a tape measure and a helper. If your diagonals differ by more than one-quarter inch, note the exact difference and share it with your window provider before ordering.
Replacement windows do not need to be the exact size of the window opening. The replacement window should be approximately one-quarter to one-half inch smaller than the opening in both width and height. This clearance provides the space needed for shimming, leveling, and insulating around the frame during installation. A window ordered at the exact opening dimensions has zero clearance and either will not fit at all or will be forced into place without room for proper sealing. A window ordered too small creates excessive gaps that compromise insulation and allow air infiltration.
According to ENERGY STAR data, air leakage around windows and doors accounts for 25 to 40 percent of the energy used for heating and cooling in a typical home. The gap between a properly sized new window and its opening, filled with low-expansion spray foam, is what prevents conditioned air from escaping and outside air from entering. The EPA has found that poor installation alone can reduce energy performance by up to 25 percent even when premium windows are used, and the most common installation problem begins with measurement errors that produce the wrong clearance.
If replacement windows are measured wrong, the consequences range from air leaks and energy loss to complete reordering delays that can add weeks to your project. A window that is too small leaves gaps that are too wide for standard insulation methods. Excessive caulking or trim cannot compensate for a significantly undersized window, and the seal degrades quickly, allowing drafts, moisture, and even insects into the wall cavity. Moisture infiltration from a poorly sealed window leads to mold growth and wood rot in the surrounding framing, which can cost thousands of dollars to repair.
A window that is too large presents an even bigger problem. You cannot trim a replacement window to fit a smaller opening. The only options are to enlarge the opening, which requires structural framing work, or to reorder the correct size. Replacement windows are custom-manufactured to your specifications, and lead times typically run several weeks. The cost of reordering is not just the window itself; it includes the delay, the second window installation appointment, and the interim period where your opening may be temporarily sealed with plywood or plastic. According to the 2025 This Old House survey, 31.4 percent of homeowners hired professional installers specifically to avoid these kinds of costly errors.
You read window size numbers using the four-digit notation system that manufacturers and contractors use to label standard window sizes. The first two digits represent the width in feet and inches, and the second two digits represent the height in feet and inches. For example, a window labeled “2436” is two feet four inches wide (28 inches) and three feet six inches tall (42 inches). The digit before the second number in each pair represents feet, and the digit after represents inches. This system was developed when lumber was commonly sold in even-foot increments, making it easier for builders to calculate framing requirements.
The actual manufactured window is typically one-half inch smaller than the nominal size the notation represents. A “3648” window, nominally 36 inches wide by 48 inches tall, may actually measure 35 and one-half inches by 47 and one-half inches. That half-inch difference accounts for the installation clearance within the rough opening. When ordering the right size window, confirm with your supplier whether the dimensions listed are nominal (the rough opening size) or actual (the manufactured window size).
A 3040 window size is a window that fits a rough opening approximately three feet zero inches wide by four feet zero inches tall, which equals 36 inches wide by 48 inches tall. The “30” represents three feet and zero additional inches of width, and the “40” represents four feet and zero additional inches of height. The actual manufactured window for a 3040 opening measures approximately 35 and one-half inches by 47 and one-half inches. This is a common size for vinyl and fiberglass double-hung windows used in bedrooms, bathrooms, and hallways.
Yes, 36×60 is a standard window size and is one of the most common residential window dimensions in the United States. A 36-inch-wide by 60-inch-tall window fits the rough opening in many living rooms, dining rooms, and primary bedrooms built to modern construction standards. According to industry sizing data, 36 inches by 60 inches is widely considered the single most common window size in American homes because it provides an optimal balance of natural light, ventilation, and compatibility with standard 16-inch or 24-inch stud wall framing.
A 36×36 window is three feet wide by three feet tall, forming a perfect square with nine square feet of total frame area. This size is commonly used for picture windows, kitchen windows above sinks, and some casement windows. A 36×36 window provides substantial natural light in smaller rooms without requiring the structural header span that wider windows need. The actual manufactured dimensions are typically 35 and one-half inches by 35 and one-half inches to accommodate the standard half-inch installation clearance.
| Window Type | Standard Width Range | Standard Height Range | Most Common Size | Common Rooms |
|---|---|---|---|---|
| Double-Hung | 24″ to 48″ | 36″ to 72″ | 36″ x 60″ | Bedrooms, living rooms |
| Casement | 16″ to 48″ | 24″ to 84″ | 24″ x 48″ | Kitchens, bathrooms |
| Sliding | 36″ to 84″ | 24″ to 60″ | 48″ x 36″ | Basements, kitchens |
| Picture | 24″ to 96″ | 12″ to 96″ | 48″ x 48″ | Living rooms, great rooms |
| Awning | 24″ to 48″ | 20″ to 40″ | 36″ x 24″ | Bathrooms, basements |
Sources: This Old House 2025 Window Survey; Modernize.com Standard Window Size Guide; APRO Standard Window Size Data
You measure for replacement windows in an older home by following the same three-point measurement process for width, height, and depth, but with extra attention to settling, frame deterioration, and non-standard sizing. Older homes experience foundation settlement, wood shrinkage, and framing movement that cause window openings to drift out of square and out of standard dimensions. A home built in the 1940s or 1950s may have window openings that no longer match any standard size available from manufacturers. In these cases, custom-manufactured windows based on your exact measurements are the correct solution.
Homes built before 1978 may also contain lead-based paint on window frames and surrounding trim. Under EPA rules, any contractor replacing windows in a pre-1978 home must use lead-safe work practices to prevent lead dust hazards. Our team at EnergyGuard is EPA Lead-Safe Certified, which means we follow all required containment and cleanup protocols. Beyond lead concerns, older homes in Oregon often have thinner wall depths than modern construction. Measuring depth is especially important because a standard replacement window may not fit a wall that was built to older framing dimensions. If your jamb depth comes in under three and one-quarter inches, tell your window provider so they can recommend a product designed for shallow frames.
Yes, egress windows need special measurements because they must meet minimum size requirements established by the International Residential Code (IRC) for emergency escape and rescue. Section R310 of the IRC requires that every bedroom and habitable basement space have at least one egress window with a minimum net clear opening of 5.7 square feet, a minimum opening height of 24 inches, a minimum opening width of 20 inches, and a maximum sill height of 44 inches from the finished floor. These dimensions refer to the usable opening when the window is fully open, not the overall frame size. A double-hung window, for example, must open wide enough in its operable sash to hit that 5.7-square-foot clear opening, which often requires a larger frame than homeowners expect.
When measuring a bedroom or basement window for replacement, measure the clear opening of the existing window with the sash fully open, and compare it to the IRC minimums. If your existing window does not meet current egress code, replacing it with a same-size unit maintains the non-compliance. Upgrading to an egress-compliant window during the replacement project adds safety and can increase your home’s resale value. According to ENERGY STAR, certified replacement windows can reduce heating and cooling costs by an average of 12 percent nationwide, so upgrading both the size and the energy performance simultaneously makes a single project accomplish two goals.
Yes, you can measure for replacement windows yourself if your window openings are standard shapes, your frames are in good condition, and you follow the three-point measurement process carefully. Most homeowners with a locking tape measure, a level, and a helper can produce accurate measurements for standard rectangular windows. The key is measuring to the nearest one-eighth of an inch and recording every number immediately. Round down, never up. An undersized window can be shimmed into place; an oversized window cannot be trimmed to fit.
Professional measurement is the better choice for certain situations. Bay and bow windows involve complex angle measurements across multiple panels. Custom-shaped windows like arches, circles, and trapezoids require geometry that goes beyond a tape measure. Homes with significant settling where multiple openings are badly out of square benefit from a trained eye that can identify framing problems before ordering. According to the 2025 This Old House survey, 31.4 percent of homeowners hired professional installers specifically to guarantee correct installation, and many of those professionals include measurement as part of the service. We offer free in-home design consultations that include professional measurement of every window in the project, so you never have to worry about ordering the wrong size.
The rough opening for a 36×60 window is approximately 36 and one-half inches wide by 60 and one-half inches tall. This follows the standard half-inch rule, which adds one-quarter inch of clearance on each side of the window. The 36×60 window itself measures approximately 35 and one-half inches by 59 and one-half inches to fit within that rough opening. If your rough opening measures exactly 36 by 60 with no extra clearance, the 36×60 window will be too tight. You would need to either order a slightly smaller custom size or widen the opening by removing a thin strip of framing material.
The summary below condenses the full measurement procedure into a quick-reference checklist.
The four most common types of windows are double-hung, casement, sliding, and awning. Double-hung windows have two sashes that slide vertically. Casement windows are hinged on one side and open outward with a crank. Sliding windows glide horizontally on a track. Awning windows are hinged at the top and open outward from the bottom. Each type requires the same three-point measurement approach for width and height, but casement and awning windows may require additional clearance on the hinge side to swing open fully. According to the 2025 This Old House survey, double-hung windows remain the most popular choice at 21.54 percent, followed closely by sliding windows at 21.60 percent.
No, all windows in a house do not need to be the same size. Even windows in the same room that appear identical often have slightly different measurements because of settling and framing variations. Always measure each window individually and label it by room and location. Transferring measurements from one window to another, even when they look the same, is one of the most common causes of ordering errors.
Measuring all the windows in a house typically takes one to three hours depending on the number of windows and the complexity of the openings. A typical home with 10 to 15 standard rectangular windows takes about one to two hours for a careful, methodical measurement session. Homes with bay windows, custom shapes, or hard-to-access upper-story openings take longer.
Window measurements for replacement refer to the frame opening dimensions, not the glass size alone. When you measure from jamb to jamb, you are measuring the space the replacement window’s frame will occupy. The glass area within the replacement window’s frame is smaller than the overall frame dimension. Always confirm with your supplier whether the listed dimensions refer to the frame size or the rough opening size.
Yes, you can order replacement windows online with your own measurements, but professional verification before placing the order reduces the risk of costly errors. Many manufacturers and retailers accept homeowner-supplied measurements for custom window fabrication. Visiting a showroom to see window options in person before ordering also helps you choose the right style for your measurements. If you order based on your own dimensions and the window does not fit, the return and reorder process can take weeks and may not be covered by the supplier’s policies.
The standard minimum depth for a replacement window is 3-1/4 inches, measured from the interior stop to the exterior stop of the existing frame. Most modern replacement windows fit within this depth. If your wall depth is shallower than 3-1/4 inches, which occasionally occurs in older construction, you may need extension jambs or a specialized shallow-frame product. Some premium window lines from brands like Milgard and Marvin offer variable-depth options for non-standard wall thicknesses.
Accurate measurements are the foundation of every successful window replacement project. The process is straightforward: measure width, height, and depth at three points each, use the smallest number from each set, check the diagonals for square, and record everything carefully on a labeled sketch of your home. That simple system, followed patiently and precisely, prevents the most common and most expensive mistakes in the entire replacement process. The 2025 Remodeling Cost vs. Value Report found that vinyl window replacement recoups 68.5 percent of its cost at resale, and that return depends entirely on windows that fit correctly, seal properly, and perform at their rated energy efficiency.
