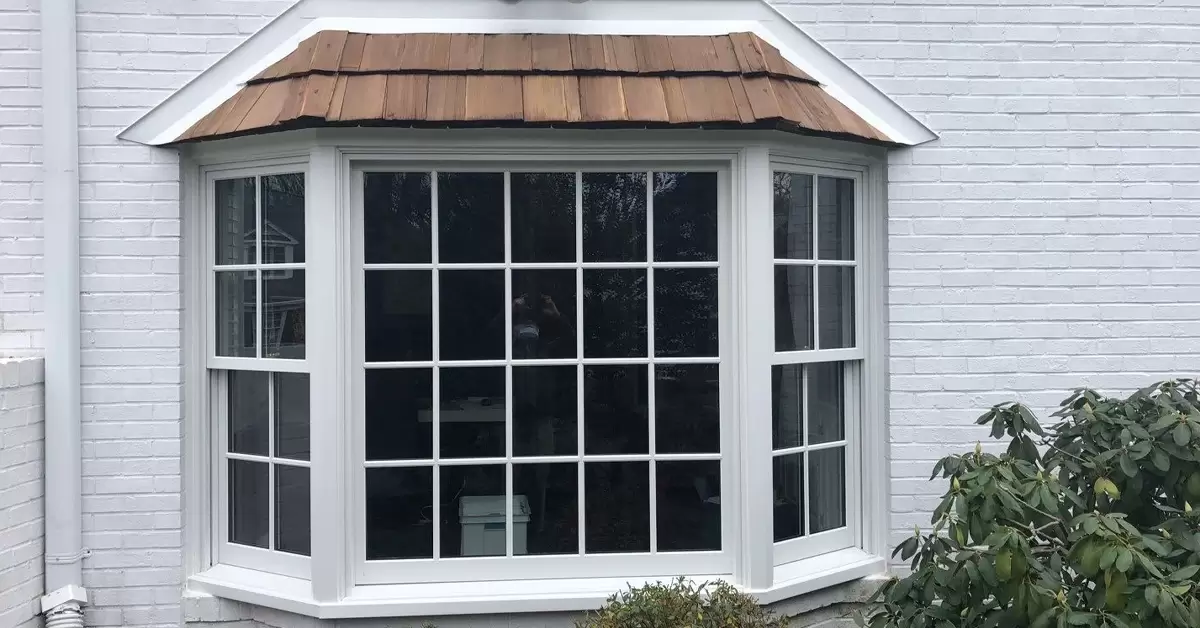

A bay window is a set of three windows joined into one unit that projects out past the exterior wall of a home. A fixed picture window sits in the center, and two smaller angled windows flank it on both sides, which brings in daylight from several directions and carves out extra space inside the room.
Below we cover what the assembly is made of, why the side windows are set at an angle, how far a bay window sticks out, what holds it up, how it performs on energy, what the building code says about putting one in a bedroom, and how to dress it once it is in.
A window is considered a bay window when three or more window units are mulled together into one assembly that projects past the plane of the exterior wall. Mulling means the separate units are joined at the factory with a shared frame member called a mullion, so the finished product arrives as a single piece rather than three windows installed side by side.
The projection past the wall plane is what separates a bay window from a flat window. A flat window sits inside the wall thickness. A bay window pushes outside it, and that push creates a small compartment on the interior floor plan that did not exist before.
That compartment belongs to a larger family of projection windows. According to Andersen Corporation, a bow window is technically a type of bay window, and the difference between the two comes down to the angles between the units. A bay uses sharp angles between three units. A bow uses shallow angles between four or more units to trace a gentle curve.
A bay window is made of a fixed center picture unit, two operable flanking units set at an angle, a seat board along the bottom, a head board or small roof along the top, mullions joining the units, and a support system underneath. Six parts, each doing a separate job.
The center picture unit carries the most glass and does not open. Picture units seal completely because there is no sash to move, which gives them the tightest air-leakage numbers of any window type. The flanking units on either side are narrower, angle back toward the wall, and open for airflow.
The seat board is the horizontal shelf across the bottom of the assembly. Infinity by Marvin builds a seat board into its bay units as a standard feature, and homeowners use that surface for plants, cushions, or storage. Directly above the glass, the head board caps the assembly and is usually finished on the outside as a small shingled or metal roof that sheds water away from the wall.
Water shedding matters more than most homeowners expect, because the head board and the wall meet at a joint that sits in the weather. We flash that joint carefully on every bay we install, and it is one of the first places we inspect on replacement windows when a homeowner reports a stain on the interior trim.
The purpose of a bay window is to bring daylight in from multiple directions, widen the view, add usable interior space, and improve airflow through operable side units. One assembly delivers four separate results, which is why the style has held on for centuries.
Daylight arrives from three orientations instead of one. A flat window faces a single compass direction and collects light for part of the day. A bay window faces three directions at once, so the room catches morning light on one flank, midday light through the center, and late light on the other flank. Daylight carries real energy value too. The U.S. Department of Energy reports that daylighting strategies can cut a home’s lighting energy use by as much as 80 percent.
The wider view follows the same geometry. Angled glass lets you look up and down the street rather than straight ahead, which is why bay windows land so often in living rooms facing a garden or a tree line.
Interior space is the fourth result, and it takes two forms. A bracket-supported bay creates a deep shelf at sill height. A bay that runs down to the foundation creates actual added square footage that furniture can sit on.
They are called bay windows because “bay” is an old architectural word for a compartment or recess in a building, and the projecting window creates exactly that. The name describes the space, not the glass.
The word traveled from Old French. According to the Online Etymology Dictionary, English borrowed “bay” from the Old French word baée, meaning an opening or a gap, in the late 14th century, and the phrase “bay window” is attested from the early 15th century. Architects still use “bay” in that older sense today when they describe a facade as five bays wide, meaning five vertical divisions.
The word has nothing to do with a bay of water. A window that pushes out of a wall forms a recess in the room, a recess is a bay in architectural language, and so the assembly took its name from the compartment it produces.
Yes, bay windows can be opened, through the two flanking units on either side, while the center picture unit stays fixed. That layout is the standard configuration across the industry.
Two operating styles are available for the flanks. Casement flanks hinge at the side and swing outward on a crank, which exposes nearly the full opening and scoops passing air into the room. Double-hung flanks slide vertically in the frame, and Infinity by Marvin notes that the upper sash on a double-hung flank can be dropped to let hot air escape near the ceiling.
Reach decides the choice more often than looks do. A crank sits at the bottom of the frame and stays within arm’s length, so casements work well over a kitchen sink or behind a seat cushion. Double-hung windows suit a bay you can walk right up to, since both sashes need a direct push.
Airflow improves because the two flanks face different directions. One flank catches a breeze coming down the street while the other lets air out the far side, which pulls a cross-current through a room that a single flat window cannot produce.
The different types of bay windows are canted bay windows, box bay windows, and oriel bay windows. All three project past the wall. They separate by flanking angle and by how the weight is carried.
Canted is the general term and the most common form. A canted bay uses flanking units set at a slanted angle, which gives the assembly a trapezoidal footprint from above. Andersen Corporation offers canted bays with flanks at 30 degrees or 45 degrees, and the shallower the angle, the less the unit intrudes on the yard.
Bow windows sit next door in the same family. A bow trades three angled units for four or more shallow ones, and Andersen sets its bow units at 10 degrees to one another to produce the curve. If a smoother silhouette appeals to you more than a defined angle, bow windows cover the same wall opening with softer geometry.
A box bay window is a bay whose flanking units are set at 90 degrees to the center unit, creating a square footprint instead of a trapezoid. Andersen classifies the box bay as a bracket-supported type and confirms that its flanks always sit at 90 degrees.
Right angles produce clean lines that read modern, and the square footprint holds furniture better than a trapezoid does because the corners are usable. Builders also use small box bays as garden windows over a kitchen sink, where the flat side glass and the shelf combine into a miniature greenhouse.
An oriel window is a bay window that is carried on brackets or corbels and stops short of the ground instead of running down to the foundation. Andersen notes that oriels appear most often on upper floors and historically carried decorative detail.
Corbel support is what defines the type. Because the unit hangs off the wall rather than standing on the earth, an oriel can be added to a second story without touching the ground floor below it, which is why the form spread through Italianate, Victorian, and Edwardian rowhouses in dense cities.
A bay window sticks out about 13 to 14 inches at a 30 degree flanking angle and about 19 inches at a 45 degree flanking angle, according to Infinity by Marvin. A 90 degree box bay projects the full depth of its side units, which is the deepest of the three.
Flanking angle drives projection depth, and projection depth drives two things at once. Outside, it decides how much yard the assembly eats. Inside, it decides how much floor or shelf you gain. A narrow side yard usually points a homeowner toward 30 degrees, while an open frontage can carry 45 degrees or a full box bay.
| Flanking Angle | Projection Past Wall | Interior Footprint | Best Fit |
|---|---|---|---|
| 30 degrees | 13 to 14 inches | Shallow trapezoid | Narrow side yards, traditional exteriors |
| 45 degrees | About 19 inches | Deep trapezoid | Seating nooks, traditional exteriors |
| 90 degrees (box bay) | Full depth of the side units | Square, corners usable | Furniture placement, modern exteriors |
| 10 degrees (bow, 4 or more units) | Shallow, spread across a wider wall | Gentle curve | Wide walls, panoramic views |
Sources: Infinity by Marvin projection data; Andersen Corporation product angle specifications.
A bay window is roughly 4 feet wide by 3 feet high at the small end and up to 11 feet 9 inches wide by 6 feet high at the large end, based on the size ranges Infinity by Marvin publishes, with custom sizing available beyond that.
Width limits come from the wall, not the window. The opening has to clear interior corners, exterior trim, and any framing the header lands on. Careful window sizing at the front of a project is what keeps a bay from arriving an inch too proud for the opening it was built for.
Bay windows are supported in one of three ways: by steel cables anchored back into the floor framing, by a knee wall built down to the foundation, or by corbels and brackets fastened to the wall. The method decides everything downstream, from the interior floor plan to the cost of the labor.
Cable support handles the cantilever. When a bay hangs off the wall with nothing beneath it, Andersen Corporation specifies cables anchored into ledgers attached to the floor joists, which transfer the load back into the house frame. Those cables then get concealed inside a hollow head board that reads as a small roof from the street.
A knee wall does the job differently. Instead of pulling the load back into the frame, a short framed wall follows the outline of the unit down to the foundation and holds it from below. Andersen notes that the seat board stops being structural in this method, since the wall itself carries the weight, and that frees the interior to become walkout floor space rather than a shelf.
Corbel support is the third path and the oldest. Brackets fastened into the wall framing carry the unit the way a bracket carries a bookshelf, which is how oriels have been built for five hundred years and how most factory-built bays ship today.
Older houses hide surprises behind the siding, and we open a fair number of walls in Newberg where the original support method is not what the exterior suggested. Here is the sequence we follow on every project:
Skipping step six is the single most common reason a bay window feels cold. That cavity is open to the outdoors on three sides, and once the trim is closed up, reaching it again means taking the finish work back apart. We handle it during installation on new windows rather than leaving it for later.
You measure a bay window by the width and height of the wall opening it will fill, excluding the head board and the seat board from the height figure. Andersen Corporation flags this directly, noting that bay window sizing is unusual because the head and seat board are not counted in the overall unit height.
That exclusion trips up homeowners who measure their existing assembly top to bottom. The number written on a manufacturer’s spec sheet describes the glass and frame stack only, so a unit listed at 60 inches high will occupy more than 60 inches of wall once the head and seat are added.
Depth is a separate measurement and it lives outside. Before ordering, we measure from the exterior wall face to the nearest fixed obstruction, which might be a walkway, a property line, a downspout, or a fence, and that clearance is what confirms whether a 30 degree or a 45 degree flank will fit.
Three width readings are standard practice. We measure the opening at the top, the middle, and the bottom, then build to the smallest of the three, because framing in an older house is rarely square and the tightest dimension is the one the unit has to clear.
Bay windows are energy efficient when the glass package, the flanking window type, and the head and seat insulation are all specified correctly. The assembly carries more glass than the wall it replaced, so each of those three choices does more work here than it would on a flat window.
Glass area is the reason the specification matters. The U.S. Department of Energy reports that heat gain and heat loss through windows account for 25 to 30 percent of residential heating and cooling energy use, and the same agency notes that 76 percent of the sunlight striking a standard double-pane window converts to heat during summer. A bay window multiplies that surface, which cuts both ways depending on what the glass is coated with.
Coatings solve most of it. Low-E glass carries a microscopically thin metallic layer that reflects heat back toward its source, keeping warmth inside during winter and pushing solar heat away during summer, and it comes standard on the product lines we carry.
Two numbers on the NFRC label tell you where a specific unit lands. U-factor measures how fast heat escapes, and lower is better. Solar Heat Gain Coefficient, or SHGC, measures how much solar heat passes through, and the right target depends on climate. ENERGY STAR Version 7.0, which took effect on October 23, 2023, sets the Northern zone threshold at a U-factor of 0.22 or lower paired with an SHGC of 0.17 or higher, and the ENERGY STAR Most Efficient designation tightens the U-factor to 0.20 or lower.
This part of the Pacific Northwest sits in that Northern zone and in IECC climate zone 4C, a marine climate that is heating dominated with mild summers. A 2023 report from the Northwest Energy Efficiency Alliance found that the 2022 Oregon energy code already exceeded the window performance proposed for the 2024 IECC, with the code U-factor for zone 4C moving from 0.30 down to 0.28. Energy Trust of Oregon reports that replacing old windows with ENERGY STAR certified windows lowers household energy bills by an average of 12 percent nationwide. Reading those U-factor ratings before you order is what separates a bay window that holds heat from one that leaks it.
Window type on the flanks adds a final increment. A casement flank compresses against the frame on all four sides when it latches, which seals more tightly than a double-hung flank that slides in a track. Across a wet, cool Portland winter, that difference shows up as fewer drafts along the seat board.
Yes, you can put a bay window in a bedroom, as long as the room still has an opening that meets the emergency escape requirements in the building code. Section R310 of the International Residential Code governs that opening, and the arithmetic surprises people.
The code sets four dimensions at once. An emergency escape and rescue opening needs a net clear opening of at least 5.7 square feet, at least 24 inches of clear height, at least 20 inches of clear width, and a sill no more than 44 inches above the finished floor. Grade floor openings get a small break at 5.0 square feet. All four have to be satisfied together, not three out of four.
Net clear opening is the phrase that matters, because it counts only the hole you can actually climb through when the window is fully open. The fixed center unit of a bay window contributes exactly zero to that figure no matter how large the glass is, so the entire code burden falls on the two flanks.
Flank type therefore decides compliance. A crank-operated flank swings clear of the frame and delivers close to its full opening as net clear area, while a sliding sash gives back roughly half. That is why casement windows are the practical choice when a bedroom bay has to serve as the escape route.
Where the bedroom already has a compliant window elsewhere, the bay is free to be whatever suits the room. We confirm which situation applies before we quote, because the answer changes the flank specification.
The best rooms for a bay window are living rooms, dining rooms, kitchens, bedrooms, and any space where a reading nook or breakfast nook would earn its keep. Each room uses the assembly for a different reason.
Living rooms use it for the view and the street presence. A bay in the front wall becomes the focal point from the sidewalk and the seating anchor from the inside, which is why the style shows up so often on the front elevation rather than the back.
Kitchens use it for the shelf. A small box bay over the sink turns dead wall into a herb garden with side glass that catches morning sun, and the 90 degree flanks keep pots from sliding off an angled ledge.
Dining rooms and breakfast areas use it for the footprint. A 45 degree bay carves out enough depth for a bench and a small table, converting a corner that held nothing into a place people sit every day.
Orientation deserves a thought before the room is chosen. West-facing glass takes the hardest solar load in the afternoon, and the U.S. Department of Energy estimates that awnings can reduce summer solar heat gain by up to 65 percent on south-facing windows and 77 percent on west-facing windows, which is worth knowing if the bay is landing on a west wall.
No, a bay window is not outdated. The form has been in continuous residential use since the early 15th century, and current production leans toward squared box bays, dark frames, and slim casement flanks that read distinctly modern.
Styling carries the age, not the geometry. A bay with cottage sashes, a Queen Anne grille pattern, and a warm stained interior reads Victorian. The same projection with 90 degree flanks, black exterior frames, no grilles, and single-sash casements reads contemporary. The compartment underneath is identical.
Design direction is running toward the form rather than away from it. Andersen has pointed to the rise of biophilic design and the return of curves and arcs in home interiors as a reason the bow, and by extension the bay, fits current work rather than fighting it.
Neighborhood context still matters more than any trend list. A Craftsman bungalow, a Tudor, and a Colonial each carry a bay comfortably but ask for different sash patterns and finishes, and the same window that flatters one historic home can look imported on another.
Yes, bay windows add value to a home, through resale cost recovery on the window project itself plus curb appeal and daylight that buyers respond to. The resale side has published numbers behind it.
The Remodeling Cost vs. Value Report, published annually by Zonda and the most cited benchmark in home improvement, puts vinyl window replacement at roughly 68.5 percent of project cost recovered at resale and wood window replacement at roughly 61.2 percent. Exterior replacement work as a category dominates the report, occupying nine of the top ten positions for return on investment.
Cost recovery is only part of the return. The rest arrives while you still live in the house, and it shows up in these forms:
Buyers price the first impression heavily, and window condition is visible from the curb before anyone walks inside. The broader effect of window work on home value comes from that combination of appearance, performance, and the objections a buyer no longer raises.
You cover a bay window either with separate treatments fitted to each of the three units or with one continuous track bent to follow the angles. The angled geometry is what makes the decision harder than it is on a flat window.
Per-unit treatments are the simpler route. Cellular shades, roman shades, or blinds mounted inside each frame follow the shape exactly, leave the seat board clear, and let you close one flank against low sun while the center stays open. The U.S. Department of Energy estimates that insulated cellular shades cut heat loss through windows by 40 percent or more and reduce unwanted solar heat gain by 60 percent, which makes them a performance choice as much as a decorative one.
Continuous treatments read more formal. A curtain track bent to the bay’s angles carries drapery around the whole assembly and frames it as one opening, though the fabric stack takes up seat depth when the panels are pulled back.
Seat clearance decides between the two more often than style does. If the bench is going to be used, the treatment has to clear it, and shades mounted inside each frame preserve every inch. Homeowners planning window replacement often pick the treatment first and let it inform whether the flanks crank outward or slide.
Before choosing a bay window, consider available wall width, exterior clearance, the support method your house can accept, and insulation at the head and seat cavities. Wall width sets the unit size, and exterior clearance sets the flanking angle, since a 45 degree flank projects about 19 inches while a 30 degree flank projects 13 to 14 inches. The support question is answered by whether the floor framing can carry cable anchors or the foundation can carry a knee wall.
The difference between a bay window and a bow window is the number of units and the sharpness of the angles between them. A bay uses three units set at sharp angles for an angular silhouette, while a bow uses four or more equally sized units set at shallow angles to trace a curve. Andersen sets bow units at 10 degrees to one another, and because a bow carries more glass across a wider wall, it generally costs more and needs more wall space than a bay.
A bay window seat is called a seat board. It is the horizontal shelf that spans the bottom of the assembly, and it serves two purposes depending on how the unit is supported. In a cantilevered bay, the seat board is part of the structure. In a bay carried by a knee wall to the foundation, the wall holds the load and the seat board becomes a finish surface.
Bay windows last as long as their frame material and their flashing details allow, which for modern vinyl and fiberglass units means decades of service. The glass and frames follow the same lifespan as any other window in the same product line. What shortens a bay specifically is water at the head joint, so the flashing where the small roof meets the wall is the detail that governs longevity.
Bay windows are harder to install than flat windows because the unit is heavier, the load has to be transferred into the house frame, and the head joint has to be flashed and roofed. Andersen notes that a cantilevered bay needs cables anchored into ledgers attached to the floor joists, and that those cables then have to be concealed. A flat window replacement involves none of that, which is why bay installation is treated as a framing project rather than a swap.
The most popular window style in American homes is the double-hung window, with casement and sliding windows following behind it. Bay windows occupy a different position in the market as a feature window rather than a volume window, so a house typically carries one bay and a dozen double-hungs. That is also why the bay tends to land on the front elevation where it does the most visual work.
A bay window is three units mulled into one assembly that projects past the exterior wall, with a fixed picture unit in the center and two operable flanks angled at 30, 45, or 90 degrees. That geometry produces daylight from three directions, a wider view, added interior space, and cross-ventilation. The parts of the project that decide whether it performs are less visible: the support method, the flashing at the head, the insulation in the head and seat cavities, and the U-factor on the glass package.
Getting those four right is what separates a bay window that a family uses every day from one that sits cold and drafty behind a curtain. We have been specifying and installing them for over 40 years, and we are glad to walk your wall with you and talk through angles, support, and glass before anything gets ordered. Our showroom in Newberg is open by appointment. Reach out to EnergyGuard Windows & Doors and we will walk your wall with you.
